Full Size Wrecker Light Bar w/ Integrated 4 Color Modules

Description

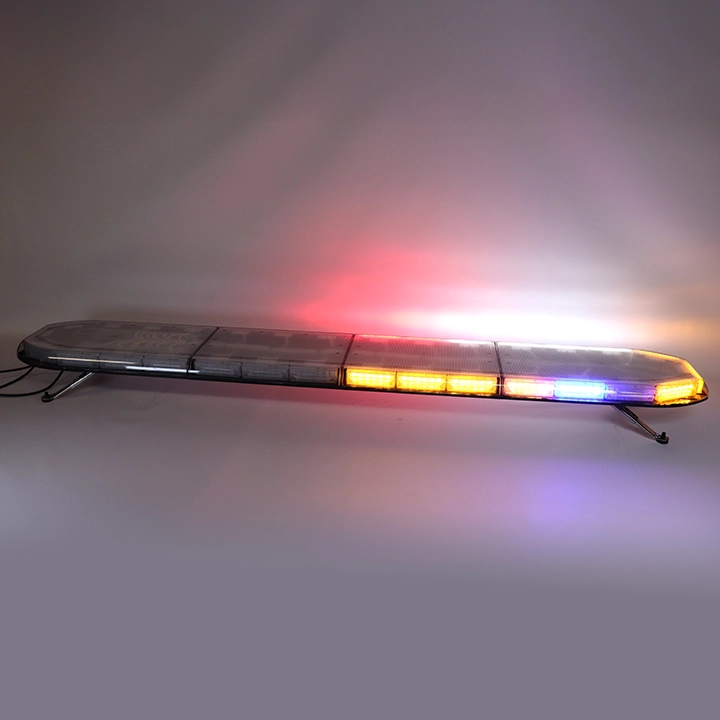

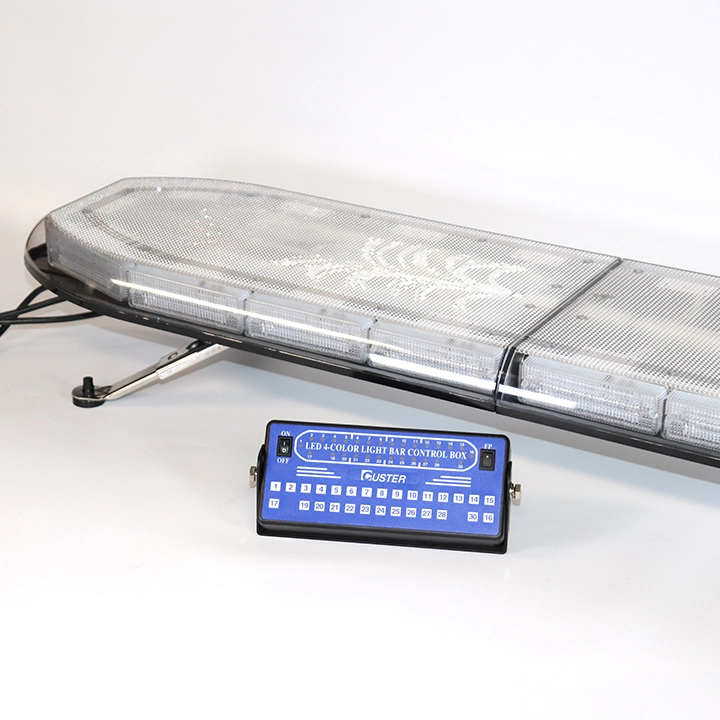

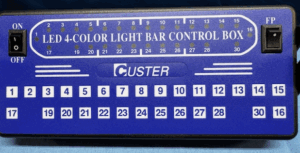

LB60MC is the newest technology in lighting for first responders.  Many states have different lighting color requirements for wrecker and service truck lighting.  Our New LB60MC light bar has 30 individual light heads that are each controlled from the operator via a touchpad in your cab.  Each light module can be changed to a different color, Amber/Blue/White/Red or Off at the touch of a button.

Flash Pattern Description and Mounting Instructions

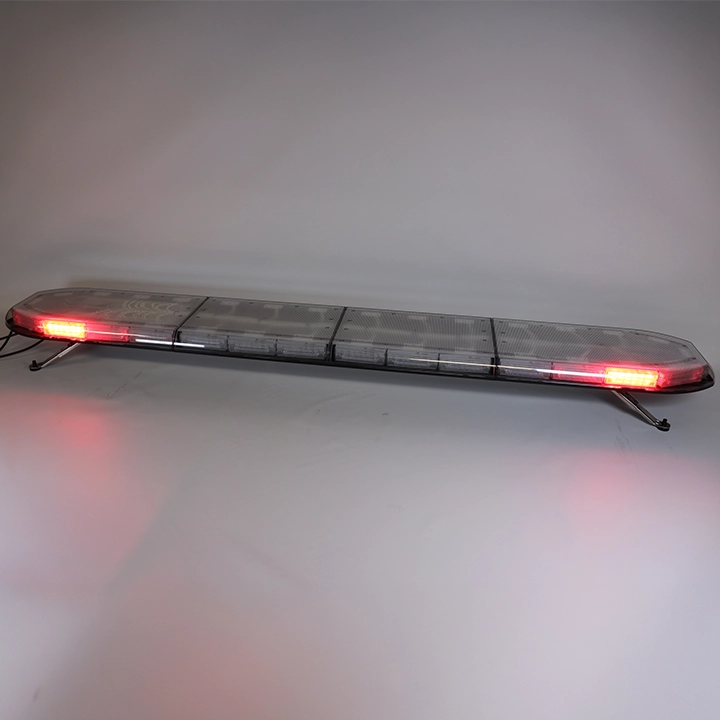

• • Built-in S/T/T lighting

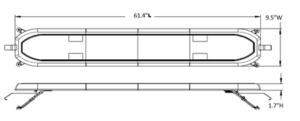

  • Dimensions 61.4″L x 9.5″W x 5″H (with mounting legs attached)
  • Stainless Steel adjustable brackets with gutter clamps included
  • IPX6 waterproof
  • Max wattage 230W
  • 11 flash patterns and 15 traffic control patterns w/ last pattern memory
  • Reverse polarity protection 12v operation
  • SAE J845 certification

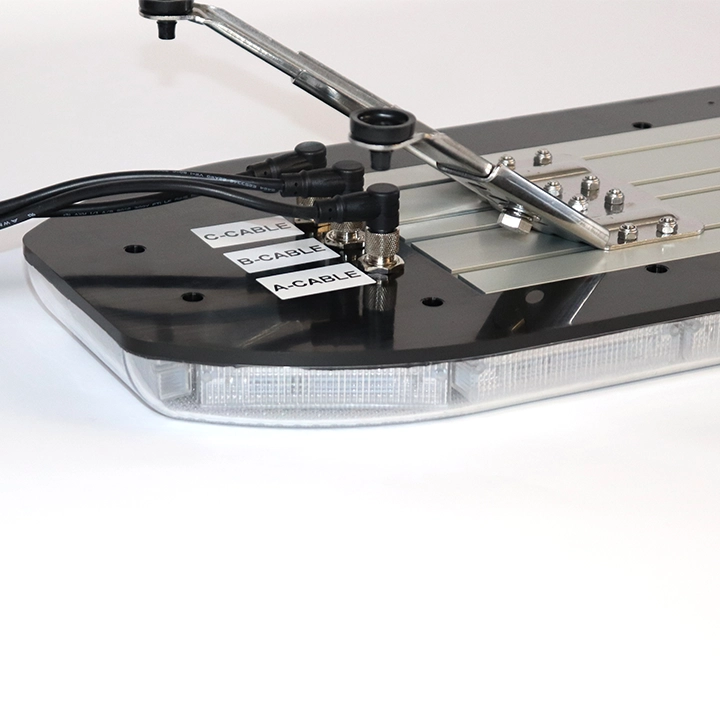

  • 3 cables included with stainless screw on connections and waterproof connectors.  Cable A (power cable) 15′ long.  Cable B (control panel cable) 30′ long.  Cable C (stop/tail/turn cable) 18′ long.
  •  Recommended 12v source with 10A fuse for power.
